Portable Air Conditioner Vent Kit with Magnetic Tube Attachment For RVs and Houses (Type G) | Through Wall Vent Kit
$99.99 – $189.99set
Magnetic Tube Attachment Portable Air Conditioner Vent Kit For RVs (Type G)
Portable air conditioner exhaust vent kit designed for houses, RVs (motor homes) and fifth wheels.
The kit is easy to install and requires no screws. The external slanted vent slats prevent rain from entering the vent while the built-in insect screen blocks entry for critters larger than 2 mm (the insect screen holes cannot be too tight so as not to have a negative impact on air flow).
Since the tube attachment and detachment is through a magnetic mechanism, connecting and disconnecting an A/C is literally a snap.
A magnetic cover is provided for off-season sealing of the vent port.

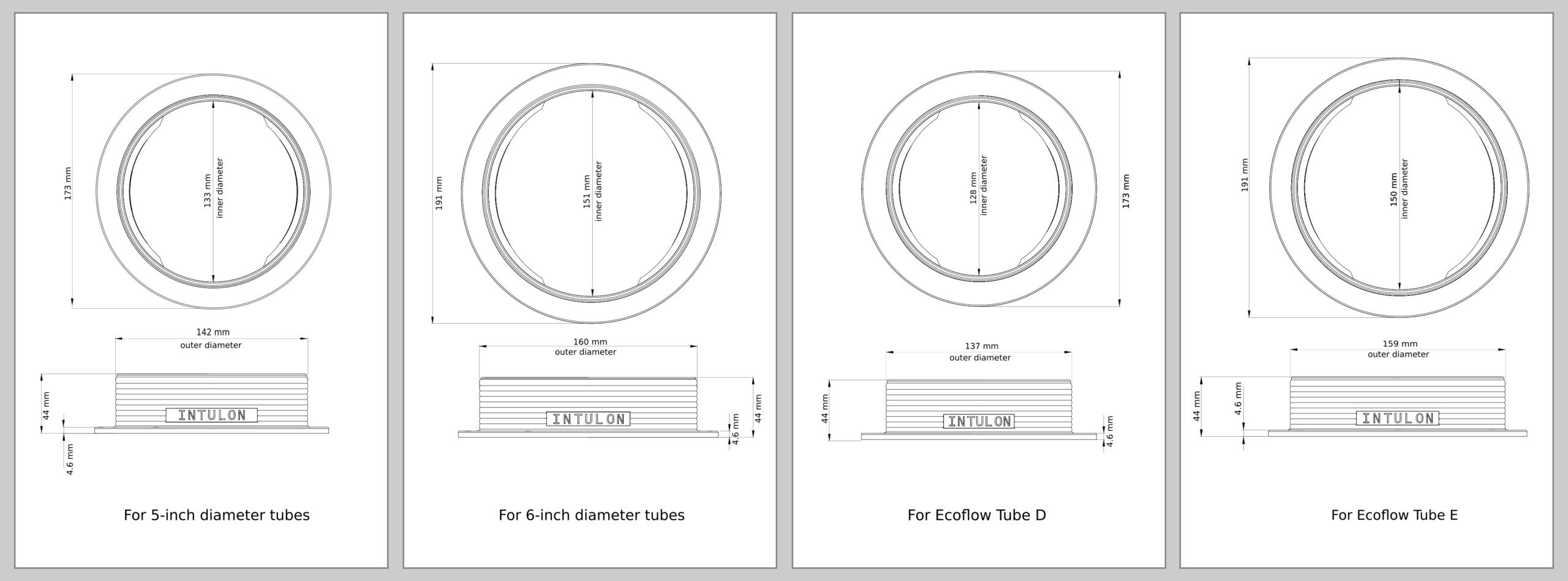

Hole saw specifications:
- for 5 inch diameter models: 150 mm
- for 6 inch diameter models: 165 mm
- for Ecoflow Wave 2 tube D models: 150 mm
- for Ecoflow Wave 2 tube E models: 165 mm
| Weight | 8 oz |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| Color |
Black ,White |
| Tube Diameter |
5 inch ,6 inch ,Ecoflow Wave 2 D ,Ecoflow Wave 2 E |
| Wall Thickness |
Up to 0.5 inch ,Up to 1 inch ,Up to 2 inches ,Up to 3 inches ,Up to 6 inches ,Up to 9 inches ,Up to 12 inches |
Only logged in customers who have purchased this product may leave a review.
Almost a decade ago when we invented the portable air conditioner exhaust accessories line of products, we used PLA material which was found to be susceptible to heat deterioration.
We have since switched to PETG and Nylon materials which are heat resistant and not susceptible to heat deterioration when used with portable air conditioners.
Type G, Type J and the like denote products with similar characteristics.
We have several products that solve more or less the same problems. However, they differ in how they function. Products of the same type look similar and are installed in similar fashion.
Factory-fitted adapters must be removed from the tube in order to thread the tube onto Intulon wall mounts.
Yes. The portable A/C exhaust wall mount plugs will screw on to an installed type G vent kit when the tube is not connected.
Type G vent kits can be installed on RVs, campers and houses. In fact, we created the deeper wall thickness variants (over 3 inches) specifically for house installations.
Our other vent kits (for example EW2-D-NET-KIT and 6VENT-NET-KIT) have parts on the outside and inside of the wall that are connected by screws.
Type G vent kits however don't use screws at all. They have a portion of the kit that go through the wall and is secured on the inside by a hand-tightened portion of the kit.
EW2-D-NET-KIT and 6VENT-NET-KIT however mount more flush on the inside whereas Type G products stick out a little (by about an inch) on the inside because of the locking ring assembly.
Type G product can be installed on think walls and walls as thick as 12 inches whereas 6VENT-NET-KIT can only be installed on tents and thin walls not thicker than 0.25 inch.
